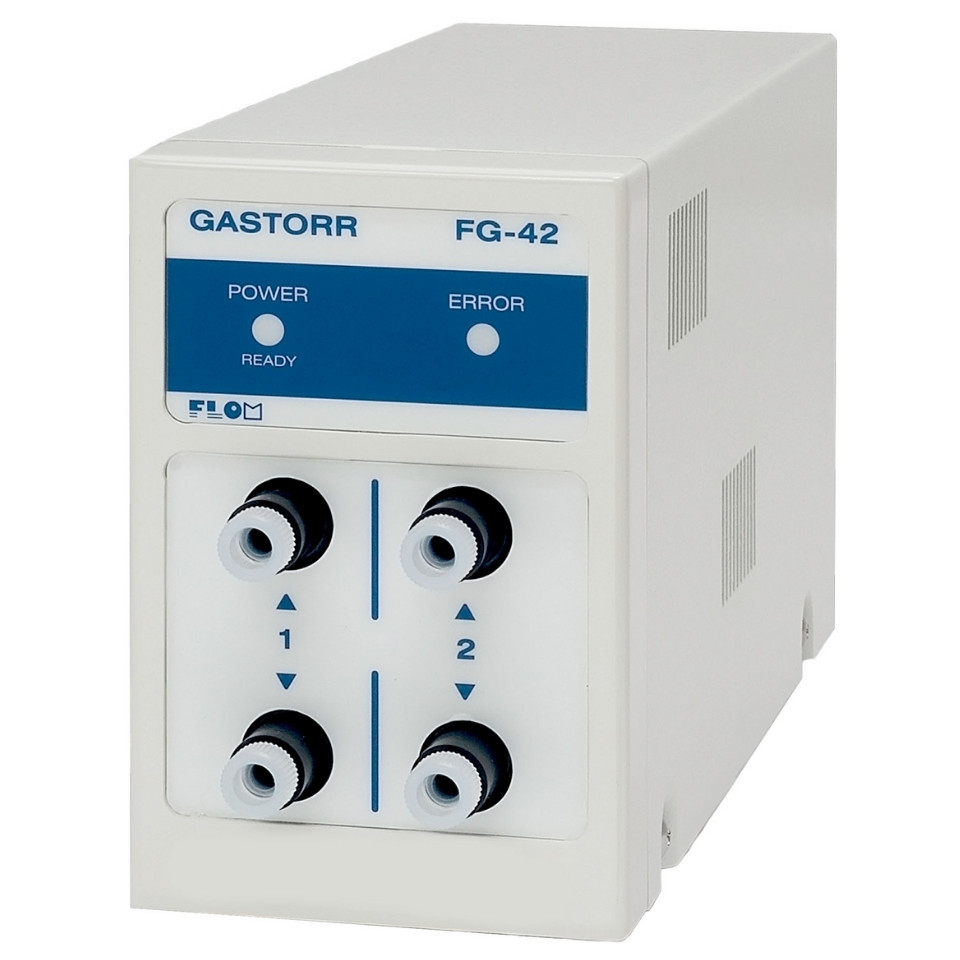

Gastorr FG-42 - 2 ch, 10 mL, 150 hPa (fixed)

SKU: FG-42

Brand: FLOM

Degassing unit for Fluorine-based Solvents.
Corrosion problems caused by fluorine-based solvents are resolved with FLOM’s vacuum tube structure and technology. The self-cleaning function keeps moisture under control making this unit an exceptionally durable degasser.

Features

• Designed for use with fluorinated solvents
• Auto cleaning function prevents vacuum pump deterioration
• CPU control achieves stable degassing
• Real time display of vacuum level
• Independent chamber design prevents solvent contamination

$2,450.00

Qty:

+ -

Overview
Applications
Resources
Request Info / Quote

Specifications

Gastorr FG-42 - 2 ch, 10 mL, 150 hPa (fixed) SKU: FG-42

Overview

Specifications

Product Name	Gastorr Solvent Degassing Unit
Product Number	FG-42
Channels	2
Internal volume	10 ml
Flow rate	≦ 5 mL/min
Thread size	1/4-28UNF
Wetted material	PTFE, ETFE, PPS
Remote control	Input：　－　Output：Error signal
Dimensions	108 (H) × 70 (W) × 240 (D) mm, excluding protuberances
Weight	Approx. 2.3 kg
Power	AC100 ～ 240 V (50 / 60 Hz) MAX 80 VA
Order code	SGA-G3008
