Air Sampler for PFAS(FM4) is a new Low Volume Air Sampler which you can analyze PFAS in the particle and gas in one sampling. You can achieve comprehensive analysis in one sampling because each stage of it has optimized material and configuration for each target substance.

Features

• Comprehensive Sampling Device
• Capable of Collecting Gaseous PFAS such as FTOHs
• Excellent Recovery Rate
• Compact and Portable
• Portable and Easy to Deploy

FM4: Air Sampler for PFAS

SKU: 1050-13015

Brand: GL Sciences

$5,280.00

Name: *

Email: *

GL Sciences: Trusted by
Scientists Since 1968

Details

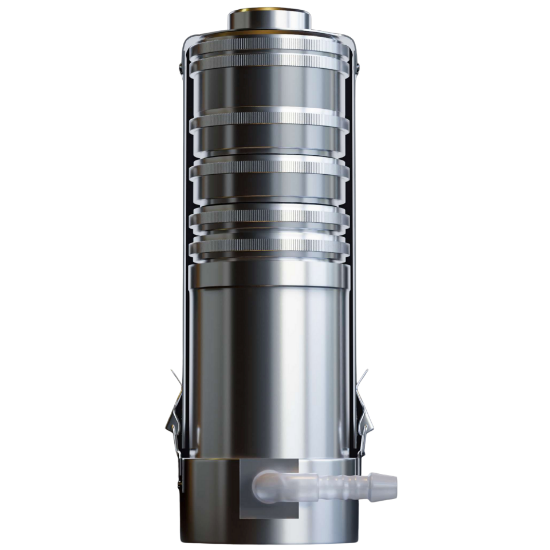

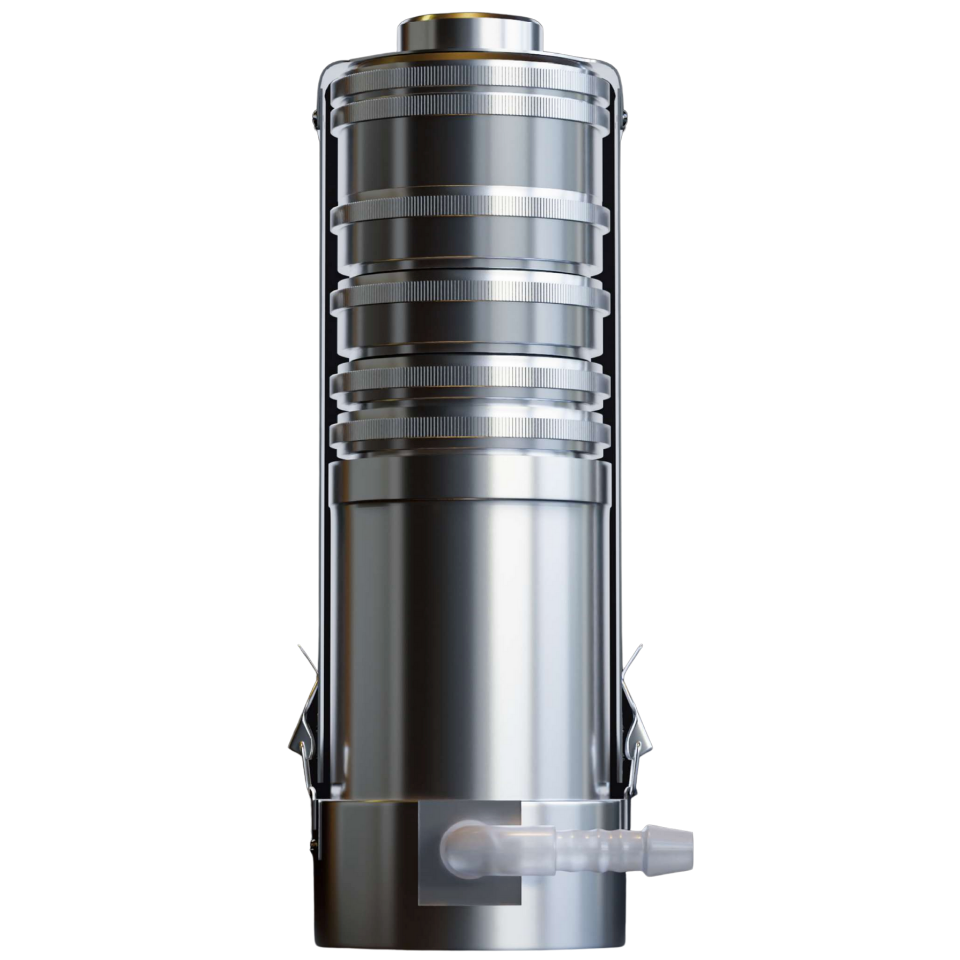

Introducing FM4: An Innovative Air Sampler for Comprehensive PFAS Analysis in Air

An air sampler called FM4 for per- and polyfluoroalkyl substances (PFAS) was developed for analyzing PFAS in air. PFAS analysis using FM4 is a groundbreaking approach, which enabled the simultaneous collection and analysis of particulate and gaseous PFAS in air.

In conventional collection methods based on filtration, accurate measurement is often difficult because gaseous PFAS may be adsorbed on particles collected on the filter surface. A gaseous PFAS may change to its non-volatile form during sampling. To solve these limitations, the FM4 was designed with an impactor that minimizes the contact between particles and gas and three types of adsorbents, which enable simultaneous collection of ionic and neutral/volatile PFAS.

The collected PFAS is eluted with organic solvents and quantified by gas chromatography-tandem mass spectrometry (GC-MS/MS) and liquid chromatography-tandem mass spectrometry (LC-MS/MS).
Conventional activated carbons typically contain complicated pores. They have been used as adsorbents for PFAS; however, the complete elution of adsorbed PFAS is difficult to achieve. Therefore, we developed a new functional activated carbon adsorbent (GAIAC), which was used as the gas-type adsorbent. GAIAC is an innovative sorbent that is composed of synthetic resin fiber with optimized pore and surface activity, which enable the collection and elution of PFAS.

Features

Comprehensive Sampling

Despite its compact size, the FM4 Air Sampler can simultaneously collect both particulate and gaseous substances. It allows the amount of each substance collected to be separately determined, making it possible to comprehensively evaluate the sampled air.

Excellent Recovery Rate

We have tested the FM4 Air Sampler with a wide range of PFAS and have achieved excellent recovery rates for all of them.

Capable of Collecting Gaseous PFAS such as FTOHs

Up to now, it has been difficult to collect gaseous PFAS in the air. However, thanks to the FM4 Air Sampler’s newly developed activated-carbon desorption material, this is no longer a problem.

Portable and Easy to Deploy

Because the FM4 Air Sampler is lightweight and compact, it is easy to carry and, with its very small installation footprint, easy to deploy.

Product Structure

Recovery of Gaseous PFAS
(general atmosphere)

Excellent Recovery for the most volatile 4:2 FTOH

20 L/ min, 48 hours sampling
Results when various labeled compounds 5ng are added to PUF

Analyses of Neutral (Volatile) PFAS
using GC-MS/MS

Specifications

Sampler

Description	Material	Dimensions	Weight	Connection	Qty.	Cat.No.
FM4	Aluminum (anodizing treatment)	Φ60 mm×195 mm	approx. 900 g	Rc 1/4	1	1050-13015

Consumables

Description	Specification	Number of use per sampling	Qty.	Cat.No.
Quartz Fiber Filter QFF31	Impactor section, Φ31mm	3 pcs	100 pcs	1050-13022
Quartz Fiber Filter QFF47	Backup, Φ47 mm	1 pc	100 pcs	1050-13023
Polyurethane Foam PUF4750	Φ47 mm×50 mm	1 pc	10 pcs	1050-13021
Activated Carbon Fiber Disk (GAIAC FF047)	Φ47 mm×2 mm	1 pc	20 pcs (2/pk × 10pks)	1050-13020

Applications

There are application notes for FM4: Air Sampler for PFAS.
