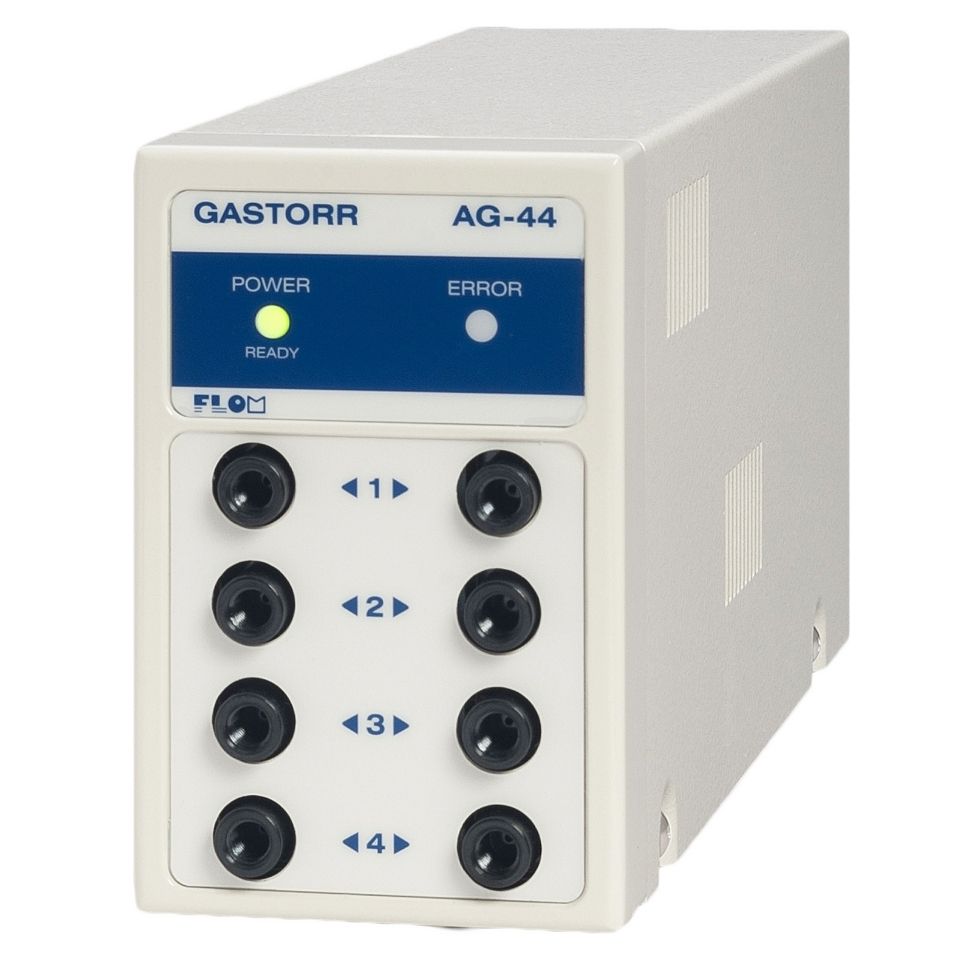

Gastorr AG-44

Gastorr AG-44

Solvent Degassing Systems Gastorr AG Series

Brand: FLOM

A trouble-less degassing series. AG-40 uses Teflon™ AF for the vacuum tubing. The auto cleaning function prevents liquefaction of solvent left inside the vacuum chamber to protect the vacuum pump from deterioration.

Features

• Low-cost alternative for low flow applications
• Auto cleaning function prevents vacuum pump deterioration
• CPU control achieves stable degassing
• Independent chamber design prevents solvent contamination
• Choose from 2 channel or 4 channel configurations

Buy Now Select Dimensions

Overview
Products
Applications
Resources
Request Info / Quote

Overview

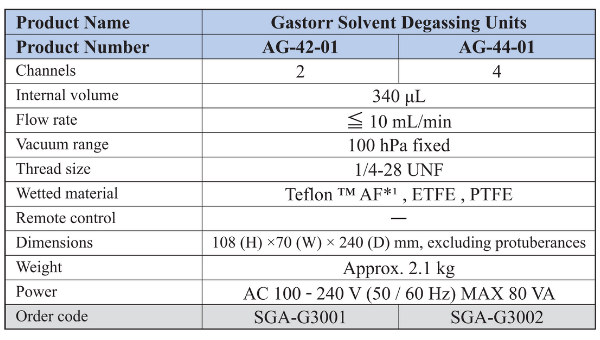

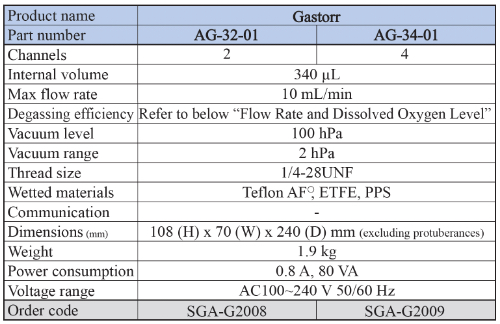

Specifications

*1：Teflon ™ AF is a registered trademark of the Chemours Corporation. Note: cannot be used with fluorinated solvents.

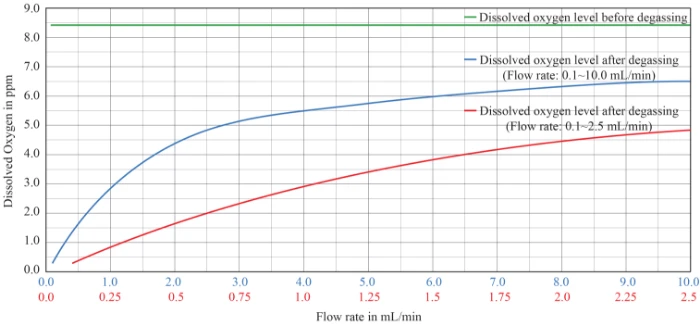

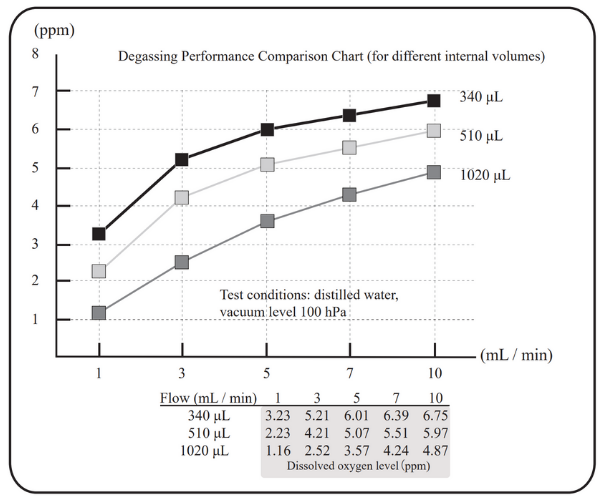

Flow Rate and Dissolved Oxygen Level

Solvent: Distilled water 25 ℃
Vacuum level: 100 hPa
Degassing unit: AG-34-01

* The data is the result from experiments performed at our factory. Contact FLOM for details.

Note that degassing performance varies greatly depending on operating conditions.

Products

4 Items

Degassing Units- Gastorr AG Series 2ch, 314uL, 100 hPa fixed

Item number: AG-32-01

$1,500.00

Degassing Units- Gastorr AG Series 4ch, 314ul, 100 hPa fixed

Item number: AG-34-01

$1,950.00

Gastorr AG-42-01 - 2 ch, 340 uL, 100 hPa (fixed)

Item number: AG-42-01

$1,800.00

Gastorr AG-44-01 - 4 ch, 340 uL, 100 hPa (fixed)

Item number: AG-44-01

$2,170.00

Applications

There are application notes for Solvent Degassing Systems Gastorr AG Series.
