2709-10100 Gas Flow Meter GF 1010 2709-10100 Gas Flow Meter GF 1010 2709-10100 Gas Flow Meter GF 1010 2709-10100 Gas Flow Meter GF 1010

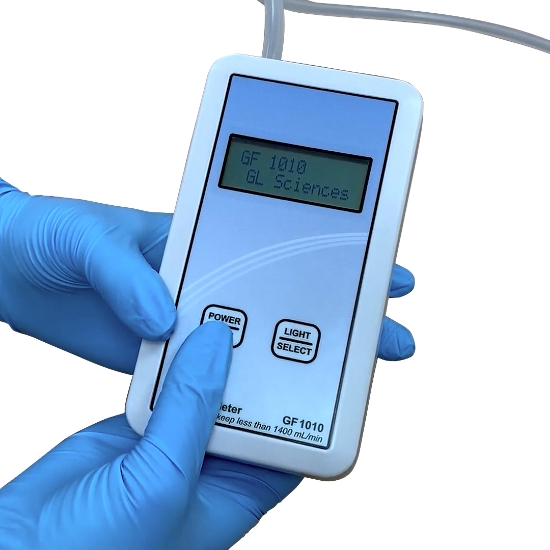

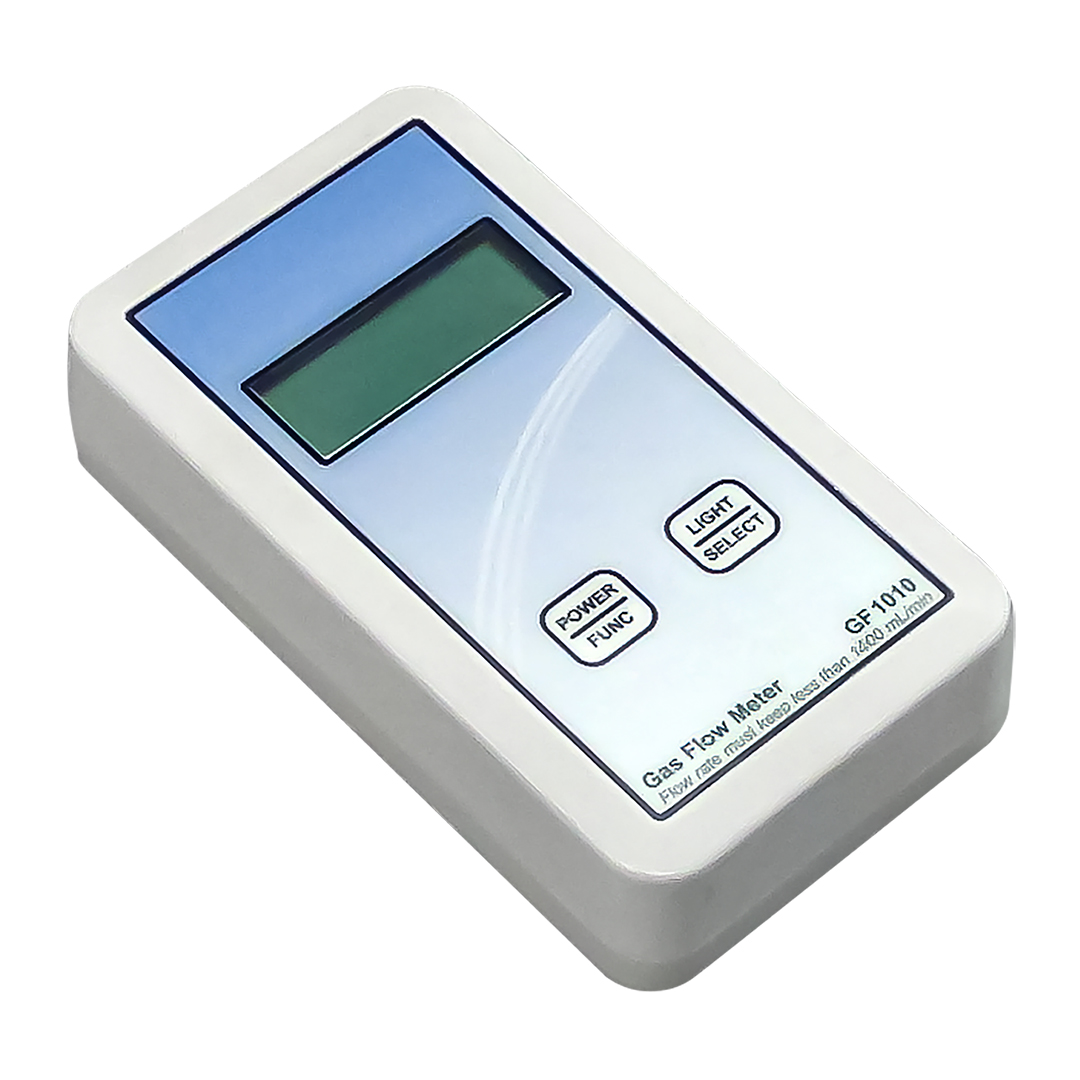

Handheld Flow Meter for Gas Chromatography (GC)

The new pocket-sized GF 1010 digital gas flow meter makes gas flow measurement easier and more accurate, helping to eliminate user errors. The GF 1010 is an essential tool for troubleshooting and routine maintenance of your gas chromatograph.

Digital Gas Flow Meter GF 1010 for Gas Chromatography (GC)

SKU: 2709-10100
Brand: GL Sciences
$1,280.00
+ -
Get expert advice or a personalized quote. Call 1-310-984-1946 or Send Message Now!
Get expert advice or a personalized quote.
Call 1-310-984-1946 or Send Message Now!
*
*
*
GL Sciences: Trusted by
Scientists Since 1968
Details


Handheld Flow Meter for Gas Chromatography (GC)






The GF1010 Digital Gas Flow meter is a handheld, portable flow meter for measuring flow rates of gases in gas chromatography systems. GF1010 uses volumetric flow measurement to measure the flow rates of gas mixtures without requiring manual selection of the target gas type.

With a range of 0.5 to 1,200 mL/min for the measurement of the gas flow rate, the GF1010 can be used for low to high-flow rate applications. Results can be quickly read from a built-in LCD display. GF1010 is convenient for routine gas chromatography maintenance and troubleshooting.

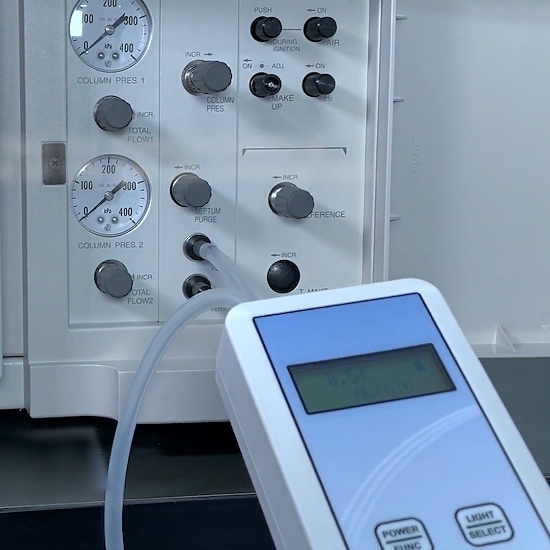

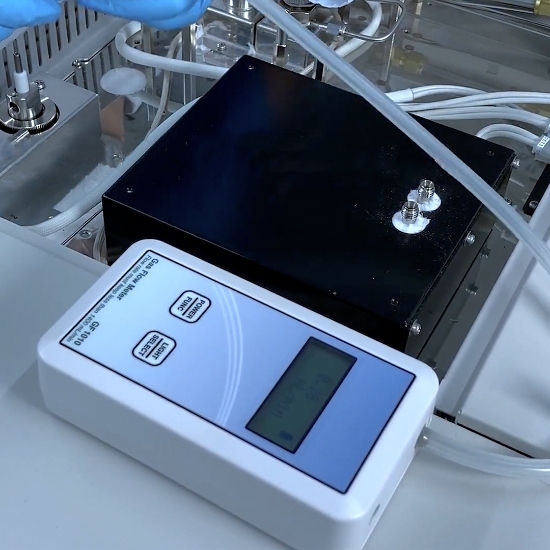

Essential tool for troubleshooting and routine maintenance of gas chromatographs.



No gas type selection needed with this volumetric meter.



It accurately measures mixed gases, making it suitable for diverse gas compositions.





Specifications


Gases Helium, Nitrogen, Hydrogen, Air, Argon, etc (Not explosion-proof structure)
Range 0.5 - 1200mL/min
*No need to select a gas type due to volume flow meter technique. Mixed gas can also be measured.
Accuracy ±3% or ±0.3 mL/min whichever is geater (for calibration gas N2)
Temperature Range 10 - 40°C
Standards WEEE, RoHS, CE
Display LCD with backlight
Silicone tube I.D. = 3mm, O.D. = 7mm
Battery 2 AA Batteries
Dimension 76(W)x135(D)x35(H)m
Weight Approx. 240 gram without battery
Functions Zero Adjustment, Battery indicator, selectable auto power off









Applications

There are application notes for Digital Gas Flow Meter GF 1010 for Gas Chromatography (GC).
×
Applications - Digital Gas Flow Meter GF 1010 for Gas Chromatography (GC)
