Overview of HPLC Columns: Types and Key Applications for HPLC Analysis

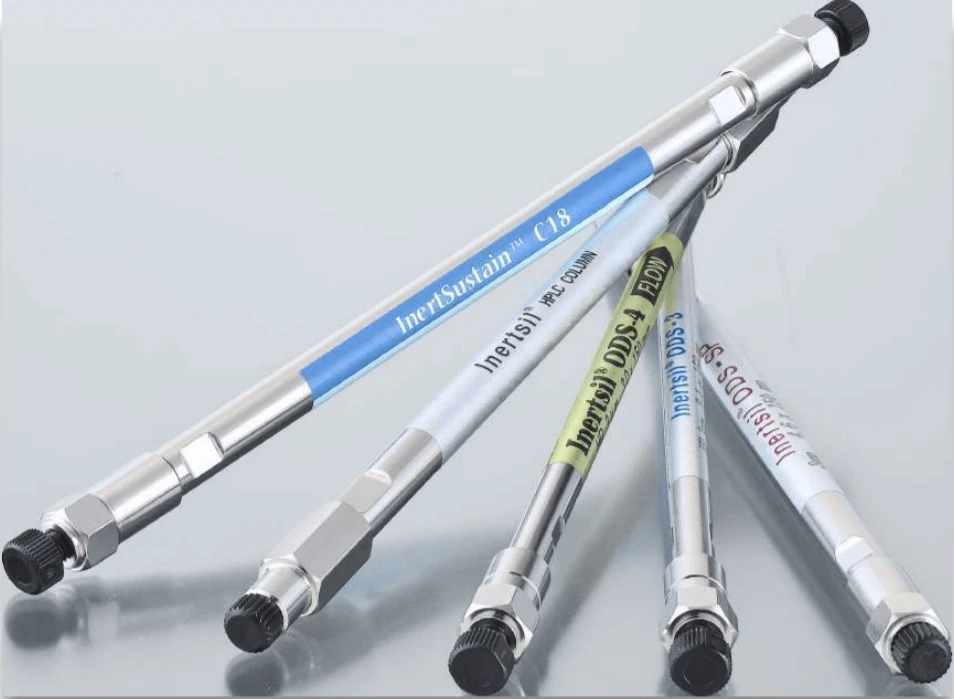

Reversed phase HPLC columns are the most commonly used in liquid chromatography due to their wide variety of commercially available phases and effectiveness in separating a wide range of compounds. These columns feature a non-polar stationary phase, typically composed of silica particles bonded with hydrophobic bonded moieties/ligands such as alkyl chains, phenyl or cyano groups. The C18 column is named after the bonded octadecyl ligand that provides the main separation mechanism for RP HPLC columns via its 18 carbon length alkyl chain. RP columns in general are a popular choice because most analysts are trained on this technique and have more experience using these columns, and their respective mobile phases. Furthermore, RP separations provide consistent retention times for a variety of analytes separated based on their hydrophobicity, while NP is notorious for shifting retention times if care is not taken during mobile phase preparation. The mobile phase for RP is often a mixture of water, methanol, or acetonitrile; is polar, and the compounds are generally eluted in order of decreasing polarity/increasing hydrophobicity making this method ideal for analyzing non-polar and moderately polar substances.

Ion-exchange chromatography is a technique used to separate charged ions in a sample mixture by utilizing an ion exchange resin that facilitates different strengths of interactions based on their relative ionic affinities. The stationary phases for these types of columns, consists of bonded groups that have an ionizable functional group that can bind to specific ions, while the mobile phase will also be controlled and consists of a specific pH, ionic strength, buffer type and buffer concentration. Ion-exchange columns are widely used for purifying proteins, nucleic acids, and other charged analytes, making them essential tools in bioseparations and various environmental, water, or industrial applications that can exploit ion exchange as the main separation mechanism.

HILIC is a variant of normal phase liquid chromatography that overlaps with ion-exchange chromatography and reversed phase HPLC. HILIC columns are specifically designed to separate polar to highly polar compounds that are poorly retained in traditional reversed phase HPLC. These columns utilize hydrophilic stationary phases with reversed phase type eluents. Longer re-equilibration times are required in order to create the correct and reproducible conditions for the HILIC separation mechanisms. While there is ongoing discussion on the main separation mechanisms employed in HILIC, it is a combination of NP, ion exchange and RP, and is beneficial for the challenging separation of highly polar compounds that can’t be resolved with the other types of columns. Moreover, the highly organic conditions make it a separation technique that is highly compatible with mass spectrometry (MS) detection, where the highly volatile and ionizable separation conditions also aid in the ionization stage for improved MS detection.

These columns feature a unique particle technology compared to the typical fully porous particle (FPP) based columns. They were introduced and are an alternative to achieve increased column efficiencies without the expense of higher backpressures. The particle architecture comprises of an inner non-porous/impermeable central core that is surrounded by a superficially porous layer. The design of SPP has been shown to reduce the resistance to mass transfer contribution, and to minimize peak broadening/dispersion with its relatively shorter diffusion path length compared to FPP (the FPP central core can be penetrated and provides inefficient zones of dispersion). This shorter diffusion path results in less longitudinal dispersion of solutes, resulting in narrower peaks and improved separation efficiency. While the impermeable core is directly related to reducing the backpressure at higher flowrates/velocities reactive to FPP of the same size.

Preparative Columns are specialized chromatography columns with large internal diameters, designed for the purification and isolation of large quantities of chemical compounds. These larger ID columns operate at higher flow rates relative to analytical scale columns (4.6 mm ID), the separation is focused on extracting/purifying a compound of interest and is evaluated based on yield and purity. Key applications include purifying active pharmaceutical ingredients, proteins, and natural products. While preparative HPLC is resource-intensive and requires a larger column, instrumentation, and solvent consumption. It offers increased scalability and versatility for processing significant quantities of material, making it essential for both manufacturing and production purposes/processes.

The ‘guard column’ can be thought of as the replaceable initial inlet part of the HPLC column that is susceptible to blocking and contamination from the sample and the system. Hence, instead of exposing these problems to the expensive HPLC column, placing a relatively cheaper guard column in front can extend the HPLC column’s lifetime. The guard column should be similar to the analytical column, as the guard columns are positioned before the analytical column. When the guard column becomes contaminated/blocked, it is easily replaced, instead of replacing the more expensive HPLC column.

Affinity chromatography is a specialized technique used to separate components of a mixture based on specific interactions between two molecules, such as an enzyme and its substrate or a protein and a nucleic acid. This method relies on the reversible adsorption of biomolecules through a biospecific interaction with a ligand attached to the stationary phase, which is solid, while the mobile phase is liquid. Affinity columns, designed specifically for this purpose, contain the ligand bound to the stationary phase, enabling the selective capture and purification of target molecules based on their unique biological functions or chemical structures. This makes affinity columns particularly valuable in biochemical and pharmaceutical research for isolating and purifying specific biomolecules with high precision.

Monolithic columns differ from traditional particle packed columns. There are two main types of monoliths: silica or polymer based monolith columns. Silica-based monoliths are created via a sol-gel process and then encapsulated in heat-shrink plastic to create the column, a very delicate process that has been subject to patenting. Monoliths are known for their speed and permeability advantages, reduction of mass transfer resistance, and lower back pressures at elevated flowrates compared to particle packed columns.

Chiral HPLC columns are used to separate enantiomers, crucial for industries like pharmaceuticals where mirror-image molecules can have different effects. They achieve separation through interactions between the stationary phase (chiral selectors) and the enantiomers, which move at different rates through the column. Common types include polysaccharide-based, protein-based, and ligand exchange columns. These columns are essential for applications in pharmaceuticals, agriculture, food, and forensics. Although they offer high selectivity, chiral HPLC columns can be expensive and require careful optimization to achieve effective separations.

In conclusion, HPLC columns are the most widely employed tool/technology in modern analytical chemistry, providing a wide range of solutions for separating simple and complex mixtures across different industries and for different applications. Selecting the appropriate column is key to a successful separation and selecting the appropriate separation mechanism(s). The different types of columns may be segregated as follows based on the separation mechanisms: normal phase, reversed phase, ion-exchange, size-exclusion, or specialized options such as affinity or chiral columns. Column selection is critical for achieving retention, selectivity, efficiency and high-resolution separations; to cater for different analytes and their respective applications from proteins and oligonucleotides to small compounds in the areas of pharmaceuticals and biotechnology to environmental monitoring and food safety. The success of HPLC in different laboratory processes lies in understanding how the stationary phase, mobile phase, and column characteristics can be exploited to enhance the separation of the compounds of interest. By leveraging the strengths of the various column types, analysts can improve the productivity and efficiency of their laboratory, driving innovation and ensuring compliance with industry standards in both research and industrial applications.
