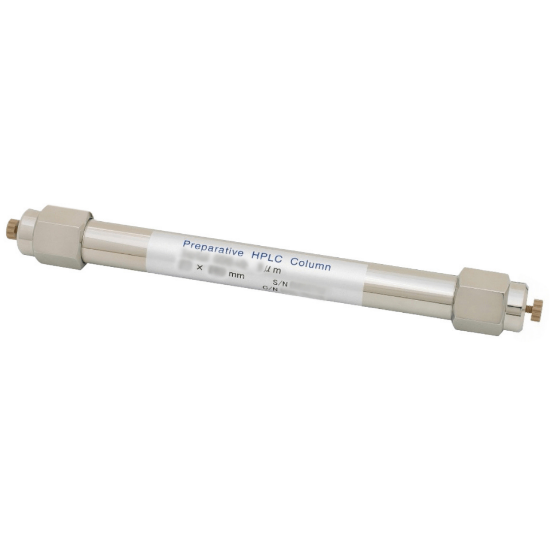

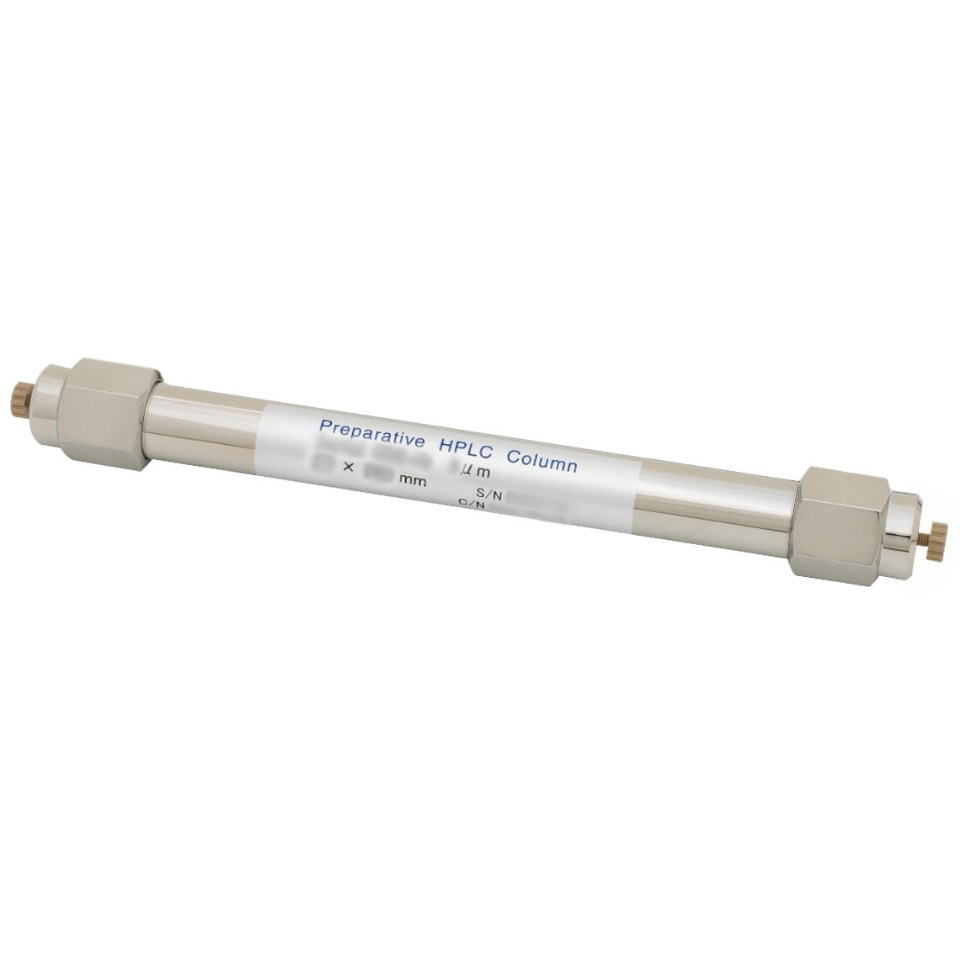

Inertsil ODS-3 Prep Column, 10 µm, 150 x 30 mm

SKU: 5020-79117

Brand: Inertsil

$7,080.00

Qty:

+ -

Protect Your Column

Add Preparative Guard Column $2,920.00

See other options:

Inertsil ODS-3
Product Collection/Series

Overview
Applications
Resources
Request Info / Quote

Specifications

Inertsil ODS-3 Prep Column, 10 µm, 150 x 30 mm SKU: 5020-79117

Specifications

Attribute name	Attribute value
Column or Guard	Column
Column format	Preparative
Phase	Inertsil ODS-3
Base Material	3 Series High Purity Silica Gel
Functional group	Octadecyl
Particle size	10 µm
Length	150 mm
Inner diameter	30 mm
Mode	Reversed phase
Surface area	450 m2/g
Pore size	100 Å (10 nm)
Pore volume	1.05 mL/g
End capping	Yes
Carbon loading	15.0%
pH Range	2-7.5
Unit size	1 pc.
Max Operating Pressure	20 MPa (200 bar)
USP Code	L1

Inertsil ODS-3 - Overview

As shown in Figure 1, Inertsil ODS-3 has a relatively strong retentivity compared to commercially available ODS columns. In addition, the introduction of higher surface area silica provide high preparative loading capacity without sacrificing peak shape which is illustrated in Figure 2.

Inertsil ODS-3 Figure 1: Comparison of Retentivity Inertsil ODS-3 Figure 2: Comparison of Loading Capacity

Applications

There are application notes for Inertsil ODS-3 Prep Column, 10 µm, 150 x 30 mm.

Resources

Request Info / Quote

Inertsil ODS-3 Prep Column, 10 µm, 150 x 30 mm
