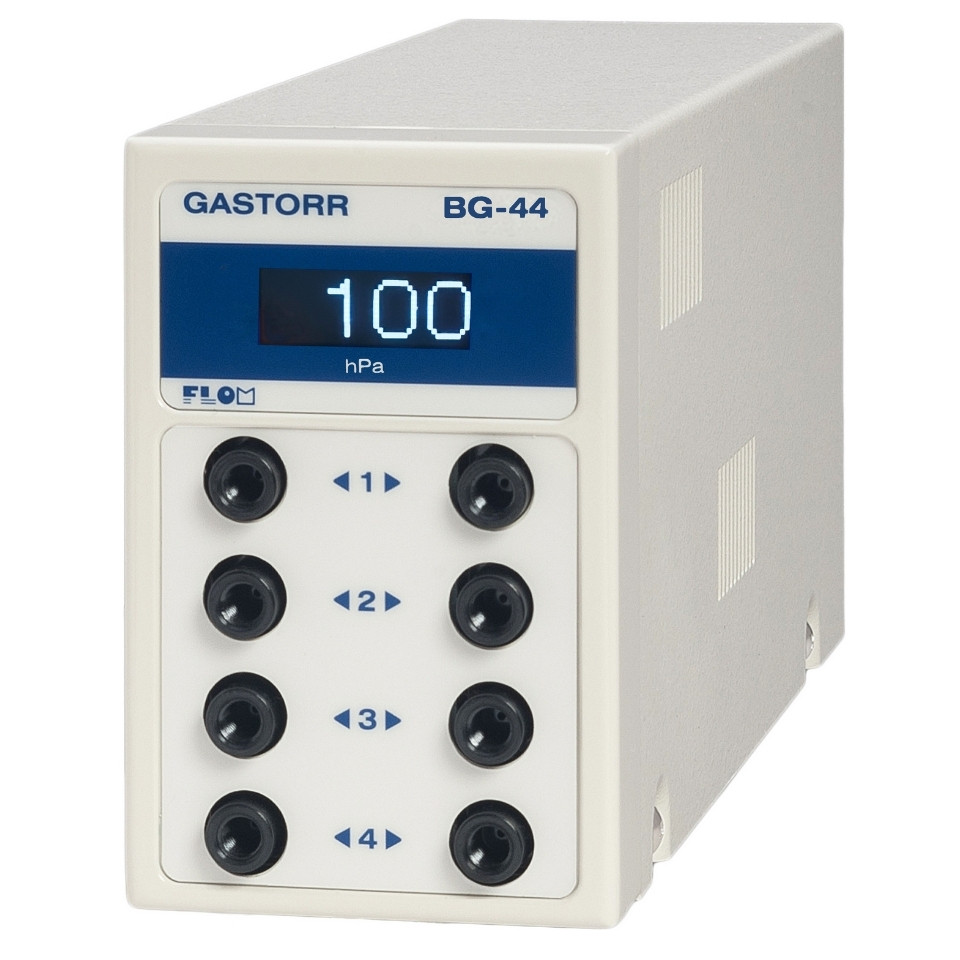

Gastorr BG-44-02 - 4 ch, 510 uL, 100 hPa (fixed)

SKU: BG-44-02

Brand: FLOM

A trouble-less degassing series equipped with larger internal volume and real time display

Features

• Pick the model with the right internal volume for your application
• Auto cleaning function prevents vacuum pump deterioration
• CPU control achieves stable degassing
• Independent chamber design prevents solvent contamination
• Choose from 2 channel or 4 channel configurations
• Real time display of vacuum level

$2,600.00

Qty:

+ -

See other options:

Solvent Degassing Systems Gastorr BG Series
Product Collection/Series

Overview
Applications
Resources
Request Info / Quote

Specifications

Gastorr BG-44-02 - 4 ch, 510 uL, 100 hPa (fixed) SKU: BG-44-02

Overview

Specifications

Gastorr BG-44-02 - 4 ch, 510 uL, 100 hPa (fixed)

Channels	4
Internal Volume	510μL
Flow rate	≦ 10 mL/min
Vacuum range	100 hPa fixed
Thread size	1/4-28 UNF
Wetted material	Teflon ™ AF*¹, ETFE, PTFE
Remote control	Input：　－　Output：Error signal
Dimensions	108 (H) ×70 (W) × 240 (D) mm, excluding protuberances
Weight	Approx. 2.1 kg
Power	AC 100 - 240 V (50 / 60 Hz) MAX 80 VA
Order code	SGA-G3004

*1：Teflon ™ AF is a registered trademark of the Chemours Corporation. Note: cannot be used with fluorinated solvents.
