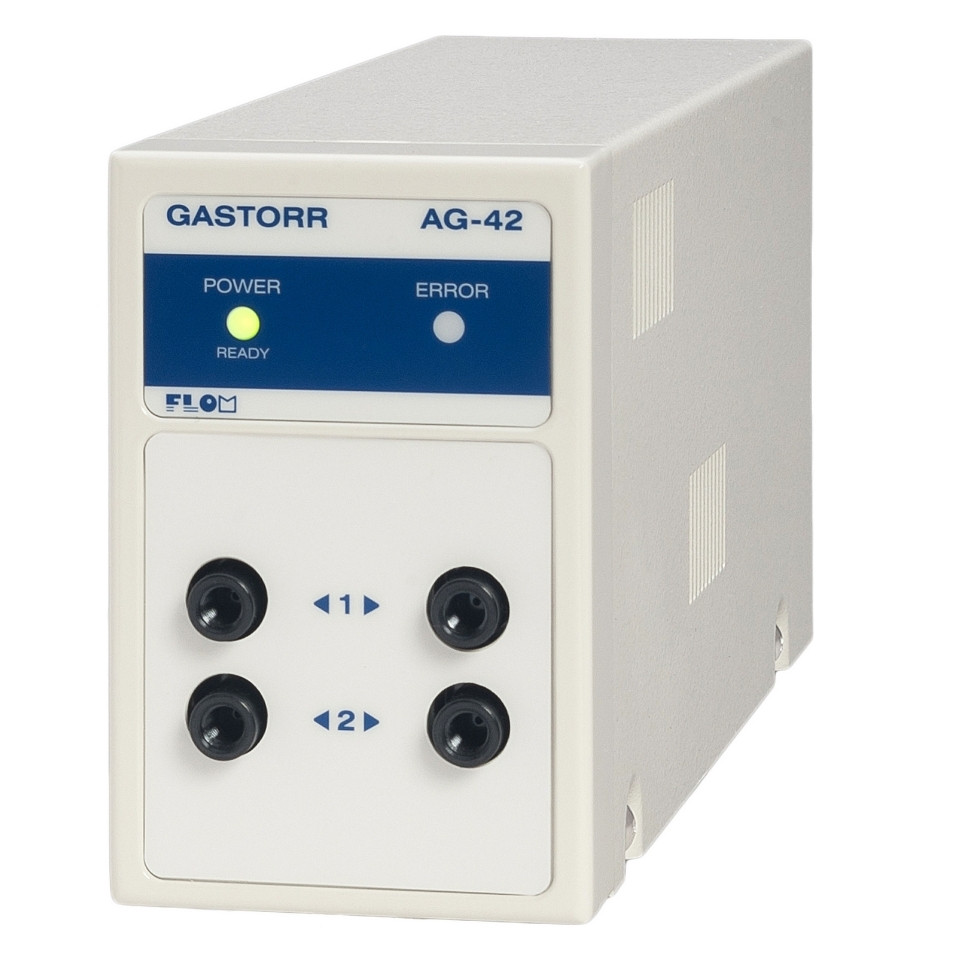

Gastorr AG-42-01 - 2 ch, 340 uL, 100 hPa (fixed)

SKU: AG-42-01

Brand: FLOM

A trouble-less degassing series. The Gastorr AG-42 uses Teflon™ AF for the vacuum tubing. The auto cleaning function prevents liquefaction of solvent left inside the vacuum chamber to protect the vacuum pump from deterioration.

Features

• Low-cost alternative for low flow applications
• Auto cleaning function prevents vacuum pump deterioration
• CPU control achieves stable degassing
• Independent chamber design prevents solvent contamination
• Choose from 2 channel or 4 channel configurations

$1,800.00

Qty:

+ -

See other options:

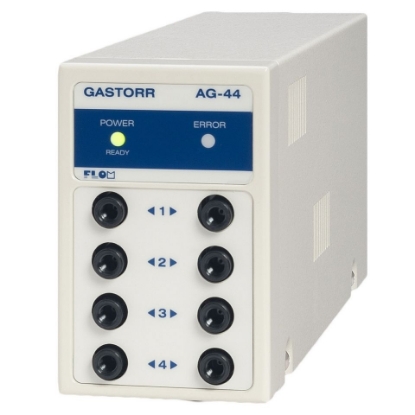

Solvent Degassing Systems Gastorr AG Series
Product Collection/Series

Overview
Applications
Resources
Request Info / Quote

Specifications

Gastorr AG-42-01 - 2 ch, 340 uL, 100 hPa (fixed) SKU: AG-42-01

Overview

Specifications

Gastorr AG-42-01 - 2 ch, 340 uL, 100 hPa (fixed)

Channels	2
Internal Volume	340 μL
Flow rate	≦ 10 mL/min
Vacuum range	100 hPa fixed
Thread size	1/4-28 UNF
Wetted material	Teflon ™ AF*¹, ETFE, PTFE
Remote control	－
Dimensions	108 (H) ×70 (W) × 240 (D) mm, excluding protuberances
Weight	Approx. 2.1 kg
Power	AC 100 - 240 V (50 / 60 Hz) MAX 80 VA
Order code	SGA-G3001

*1：Teflon ™ AF is a registered trademark of the Chemours Corporation. Note: cannot be used with fluorinated solvents.
